Considerations for Cleaning Lipid Nanoparticles

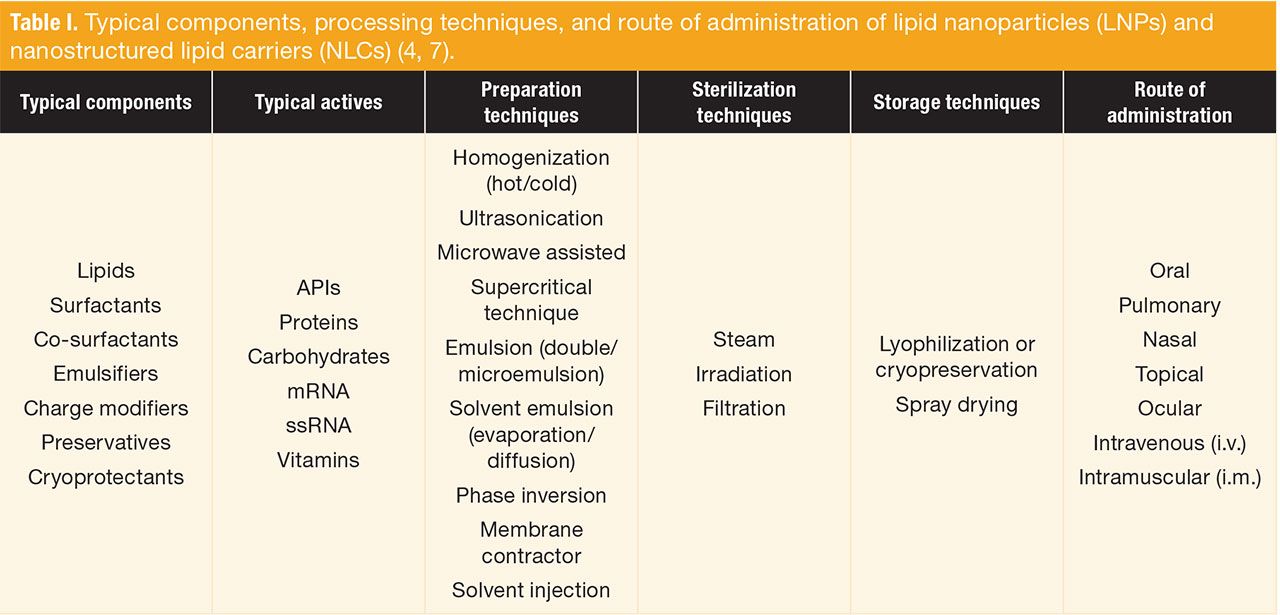

In the past several decades, advances have been made in the drug delivery vehicle for hydrophilic and lipophilic pharmaceutical actives (1). Drug delivery vehicles progressed from basic liposomes and emulsions to lipid nanoparticles (LNPs) and more advanced nanostructured lipid carriers (NLCs), which improved the therapeutic effect, reduced degradation, improved stability, controlled dosing, and minimized adverse toxicological effects of the target active (2,3). The particle size of these encapsulated LNPs and NLCs can range from 50–1000 nm and incorporate components such as lipids, surfactants, emulsifiers, co-surfactants, charge modifiers, preservatives, cryoprotectants, and others (Table I and Figure 1) (4).

Depending on the components and manufacturing process, the drug active may be within the core, lipid bilayers, surface, or combined locations (5). LNPs and NLCs delivery vehicles have been used for oral, pulmonary, nasal, topical, ocular, intravenous, and intramuscular drugs. Most recently, these LNPs and NLCs have been used in a wide range of vaccines, including hepatitis A, influenza, shingles, and the COVID-19 messenger RNA (mRNA) vaccines by Moderna/National Institute of Allergy and Infectious Disease (NIAID) and Pfizer/BioNTech (3).

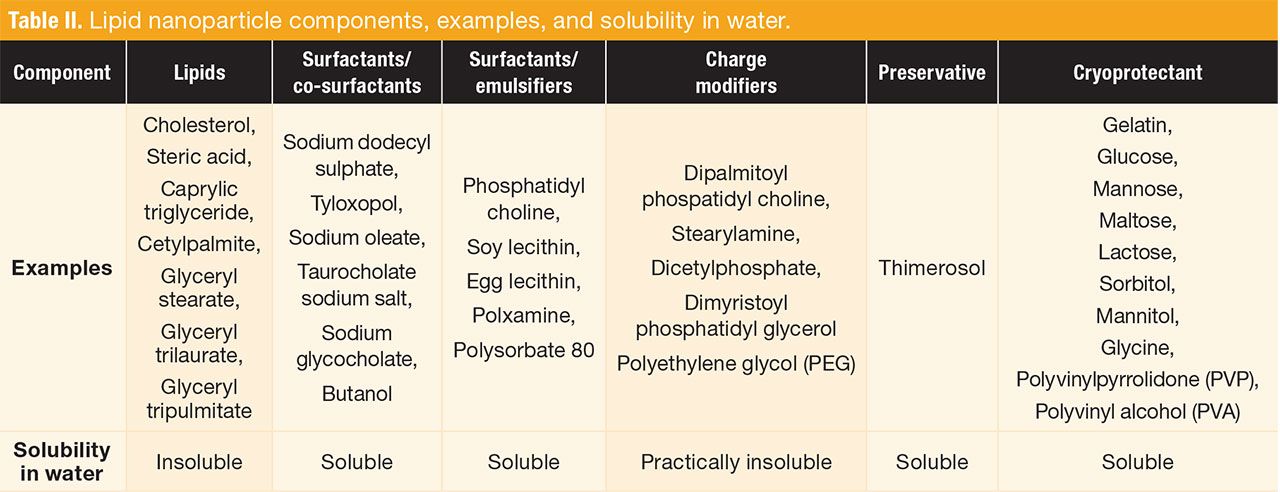

The poor solubility and complexity of the LNPs with the active ingredient create cleaning challenges when cleaning with water, sodium hydroxide in water, or alcohol (Table II). Solubility of the LNP is improved with alcohol; however, this creates flammability, storage, handling, and disposal concerns. The investigation and design of a cleaning process using laboratory coupon studies incorporating the drug components, LNP or NLC delivery vehicle, manufacturing process conditions, and surface material align with testing a process’s life cycle design phase. Critical parameters to investigate may include different components, process conditions, surface materials, cleaning agent, temperature, time, mechanical action, water quality, and rinse parameters. The overall goal of a cleaning study is to design a repeatable cleaning procedure and maintain process equipment.

This article explores the use of laboratory studies to recommend a cleaning process for COVID-19 mRNA vaccines. It provides a technique to easily design the cleaning process for other LNP and NLC delivery vehicles. The article also includes lab study results and a case study for cleaning LNPs currently used for the COVID-19 mRNA vaccine.

Materials and methods

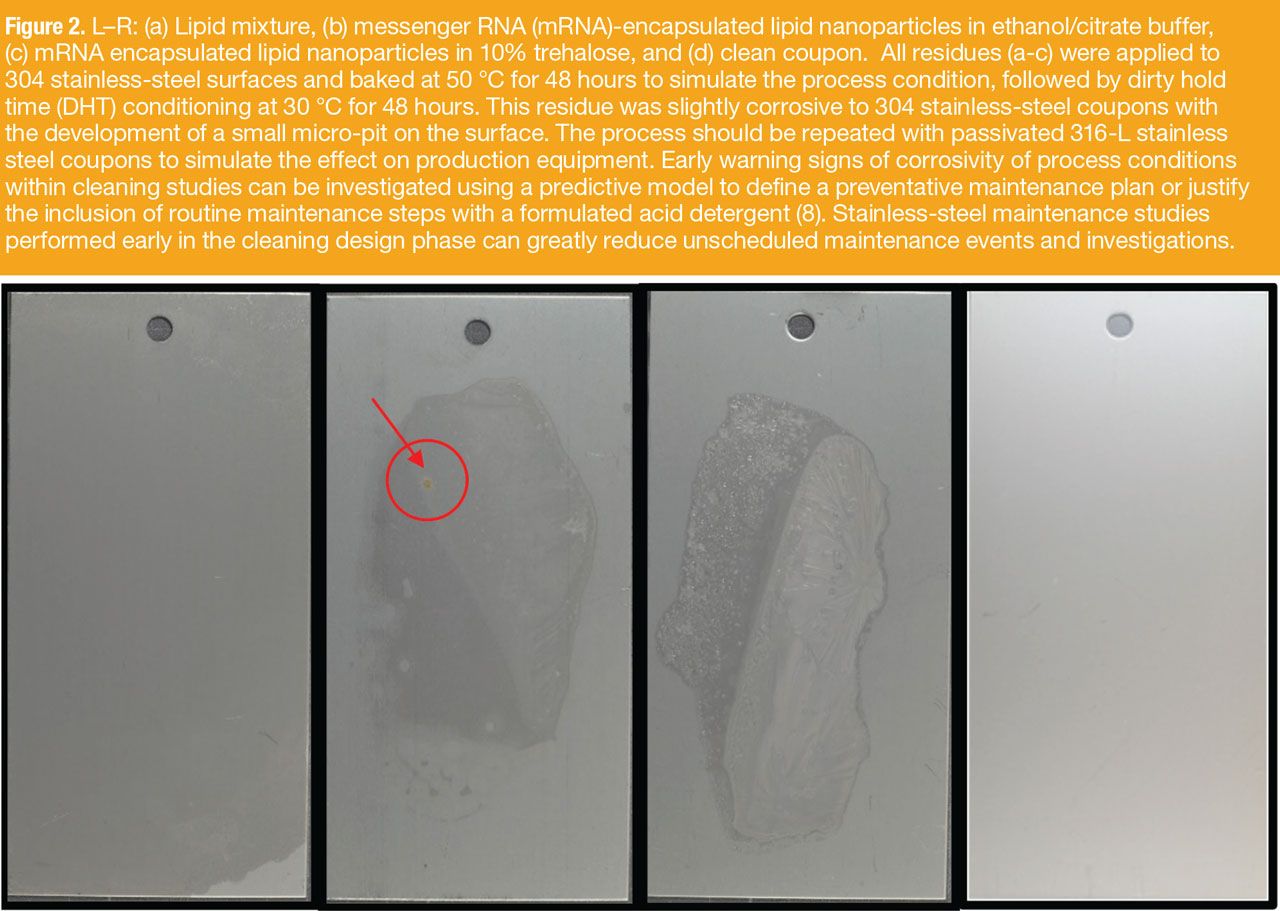

Developing a cleaning procedure for LNPs is the first step in a validation process to minimize or eliminate product contamination and ensure product reproducibility. The nature of the sample, processing time and temperature, dirty-hold-time (DHT), water quality, available temperature range, cleaning method capability, and preferred detergent of use are considered during the cleaning study (6). Studies are performed at a lab-scale using 304 stainless-steel coupons with a 2B finish to duplicate a large 316-L stainless-steel vessel used in production. The final product or components of the final blend are coated onto the surface and air-dried at ambient temperature for 24–72 hours, depending on the individual DHT requirement (Figure 2). At the end of the DHT, the coated coupon is placed in a prepared cleaning solution at the minimal temperature available using agitated immersion. Once the cleaning parameters are determined by agitated immersion, the same cleaning parameters are tested using spray wash, cascading flow, or manual scrub/wipe followed by rinse water. The cleaning parameters were evaluated by visual cleanliness, a gravimetric weight check of the pre-cleaned and post-cleaned stainless-steel surface, and a water break-free test.

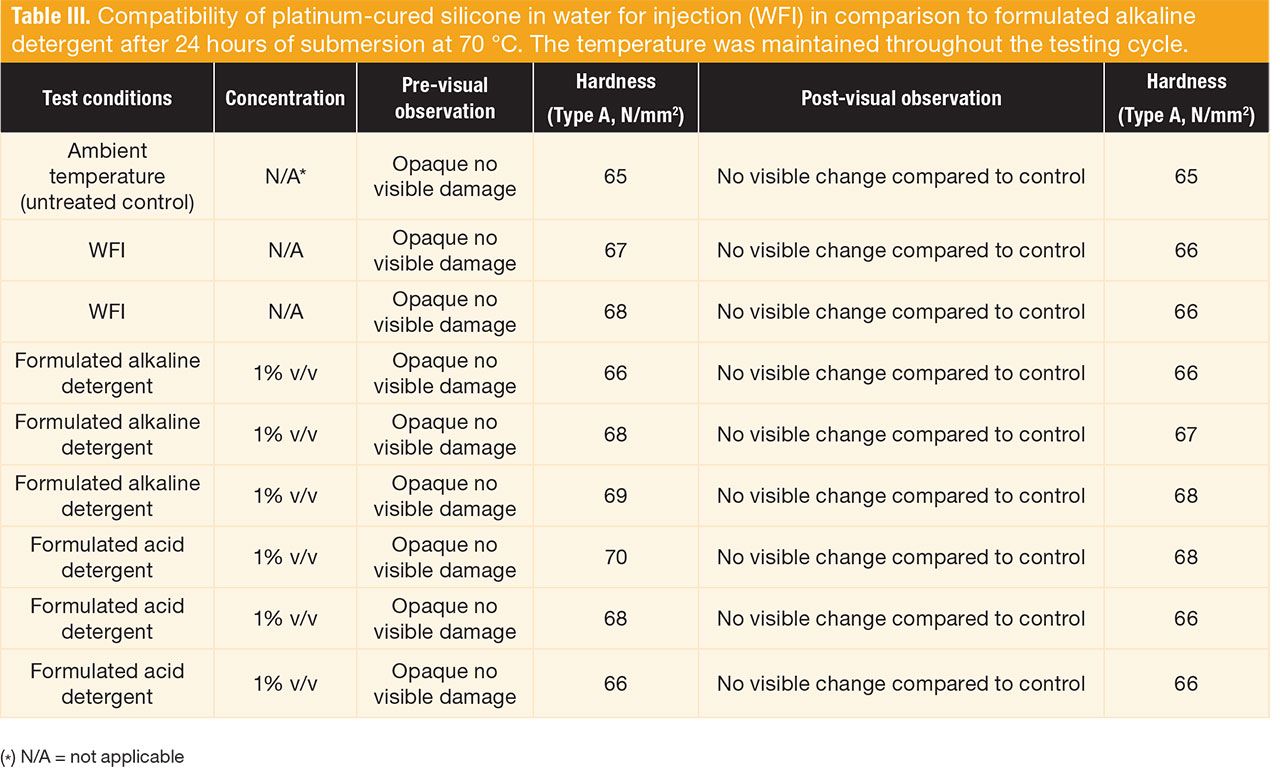

In review of the manufacturing process, the cleaning and compatibility of various substrates should be considered and possibly evaluated when designing a cleaning procedure. In one example, platinum-cured silicon was tested for substrate compatibility (Table III). At a minimum, this process requires the substrate to be exposed to the recommended detergent at a specific concentration for a designated period. If no significant changes are observed to the substrate, it is usually considered compatible.

Results

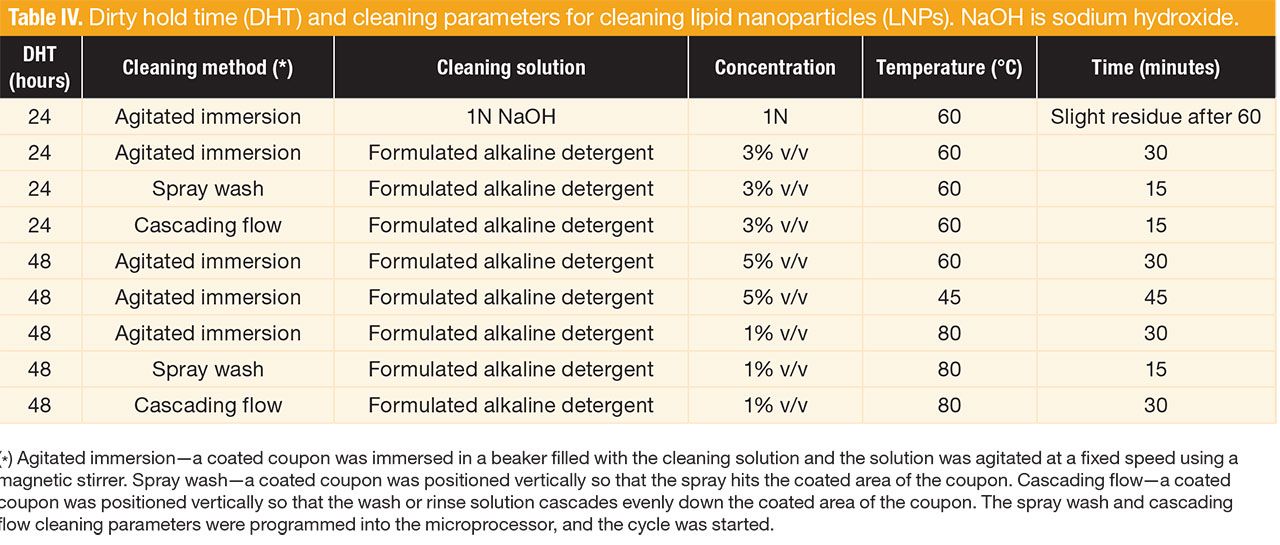

Based on the processing conditions and DHT, the cleaning recommendations ranged from a solution of 1–5% v/v formulated alkaline detergent at 45 °C–80 °C for a contact cleaning time of 15–45 minutes per agitated cleaning, spray wash cleaning, and cascading flow cleaning. These test conditions were successful as reported in Table IV, based on visually clean, water-break free, and gravimetric analysis (6). In comparison, a solution of 1N sodium hydroxide (NaOH) at 60 °C, cleaned for 60 minutes, was not effective in completely removing the LNP residue.

Case study

Progress in mRNA technologies and LNP-based delivery systems has allowed the development of mRNA COVID-19 vaccines at unprecedented speed, demonstrating the clinical potential of LNP–mRNA formulations and providing a powerful tool against the coronavirus pandemic (1). Along with the mRNA vaccine development, the goal was to develop optimum cleaning parameters, so production was safe and reproducible.

A large pharmaceutical company that developed a mRNA vaccine sent their new product to the laboratory for testing. All coupons were coated and baked at 35 °C for two and 16 hours to simulate manufacturing DHT conditions. Cleaning parameters (time, temperature, action, and concentration) were identified through testing by agitated immersion. A 1% volume-by-volume (v/v) cleaning solution of potassium hydroxide formulated detergent at 45 °C for 15 minutes was able to clean the residue. Results were confirmed by spray wash, cascading flow, and manual cleaning. Sodium hydroxide, however, was unable to achieve acceptable results.

After the successful cleaning trial with potassium hydroxide formulated detergent, the entire manufacturing area, including filling and packaging lines, adopted the same cleaning regimen.

Conclusion

Modifying the delivery vehicle of hydrophilic or lipophilic drugs from basic liposomes to complex LNPs and NLCs has improved these drugs’ therapeutic effect, stability, and toxicological profile. Water-insoluble lipids, practically insoluble charge modifiers, and hydrophilic or lipophilic active ingredients create difficulties with water or caustic (hydroxide in water) cleaning processes. Using flammable solvents, such as ethanol and isopropyl alcohol, improves lipids’ solubility and creates storage, handling, and disposal hazards, due to the volatile carbon emissions and flammability. Early investigations into the cleaning process of LNP delivery vehicles with small molecule drugs, and recently with mRNA vaccines, have demonstrated that a formulated alkaline cleaning agent can successfully clean both the active ingredient and the LNP or NLC delivery vehicle to an acceptable limit.

References

1. X. Hou, et al., Nature 6, 1078–1094
   (December 2021).
2. N. Naseri, H. Valizadeh, and P. Zakeri-Milani, Advanced Pharmaceutical Bulletin 5 (3) 305–313 (2015).
3. D. Chatzikleanthous, D.T. O’Hagan, and R. Adamo, Molecular Pharmaceutics 18, 2867–2888 (2021).
4. N. Dhimam, et al., Frontiers in Chemistry (April 2021).
5. A.K. Blakney, et al., Gene Therapy 26, 363-372 (2019).
6. D. Hadziselimovic and P. Lopolito, Journal of GXP Compliance 16 (3) (Summer 2012).
7. S. Mukherjee, S. Ray,and R.S. Thakur, Indian Journal of Pharmaceutical Sciences, July-August, 349-358 (2009).
8. E. Rivera, D. Hadziselimovic, and P. Lopolito, Pharm. Tech. 41 (2)54–60 (2017).
